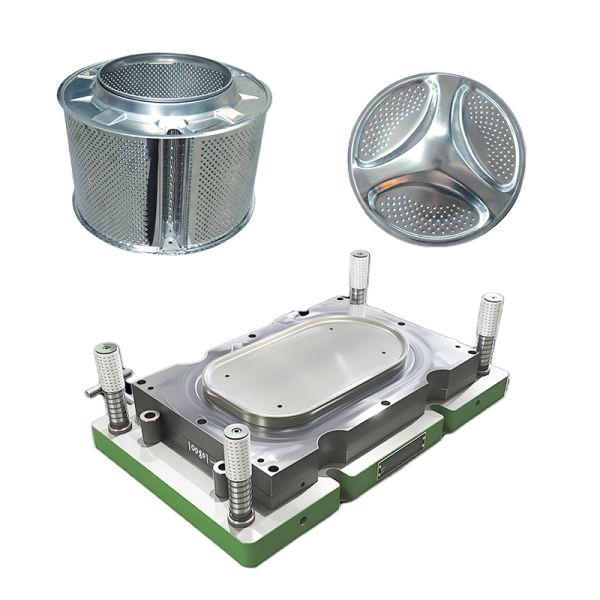

SUS430 Washing Machine Rear Cover Sheet Metal Stage Stamping Die 300T Home Appliance
Product Description
This custom stage stamping die is designed for forming SUS430 washing machine rear covers.
The die structure, forming operations and tooling specifications are developed according to the customer’s approved rear-cover drawing, material thickness, press parameters and production requirements.
Manufacturing and Project Deliverables
Manufacturing processes include CNC milling, surface grinding, wire EDM, sinker EDM, die assembly and tryout.
Standard-component brands, tool materials and coatings are defined in the approved bill of materials.
The quantity of trial parts and the required 2D and 3D assembly drawings are confirmed in the project delivery agreement.
Information Required for Quotation
- Washing machine rear-cover drawings;
- SUS430 sheet thickness;
- Required production volume;
- Press specifications;
- Critical dimensions and tolerances;
- Required sample quantity and documentation.
Final die specifications, service life and acceptance criteria will be confirmed during the technical review.
Main Specifications
| Item |
Specification |
| Die Type |
Stage stamping die |
| Application |
Washing machine rear cover |
| Workpiece Material |
SUS430 stainless steel |
| Press Capacity |
300 metric tons |
| Die Dimensions |
1200 * 950 * 560 mm |
| Approximate Die Weight |
3,000 kg |
| Standard Components |
According to the approved bill of materials |
| Design Life |
1,000,000 strokes under agreed operating and maintenance conditions |
| Minimum Order Quantity |
1 set |
| Lead Time |
Approximately 6–8 weeks |
| Packaging |
Rust-preventive oil, vacuum wrapping and export-grade wooden case |
